Binho Supernova - USB Host Adapter
The multi-protocol USB host adapter built for I3C-era hardware development — full MIPI I3C v1.2 support, plus I2C, SPI, UART, and GPIO in a single machined-aluminum tool.
The Binho Supernova USB Host Adapter lets you interface your computer directly to hardware circuits. Featuring support for MIPI I3C Protocol v1.0, v1.1.1, and v1.2, plus a modern USB Type-C connection, 5× RGB LEDs for visual status, and a variety of DUT-facing connections — all in a compact, machined-aluminum enclosure with integrated mounting holes.
Beyond I3C, Supernova communicates on I2C, SPI, and UART. All four protocols run on dedicated pins and can operate simultaneously. A dedicated bank of 6× digital GPIO pins handles interrupts, resets, and chip selects.
Specifications
- I3C: 12.5 MHz controller or target.
- SPI: 50 MHz controller, 4× CS
- I2C: 1 MHz controller, configurable pull-ups
- UART: 115200 baud, with HW flow control
- GPIO: 6 pins dedicated, configurable
Target use-cases
- Device driver development
- Firmware development & verification
- Proof-of-concept development
- Automated HW / FW testing
- FLASH & EEPROM programming
- NVMe-MI (MCTP over I3C) & JESD300-5 SPD applications

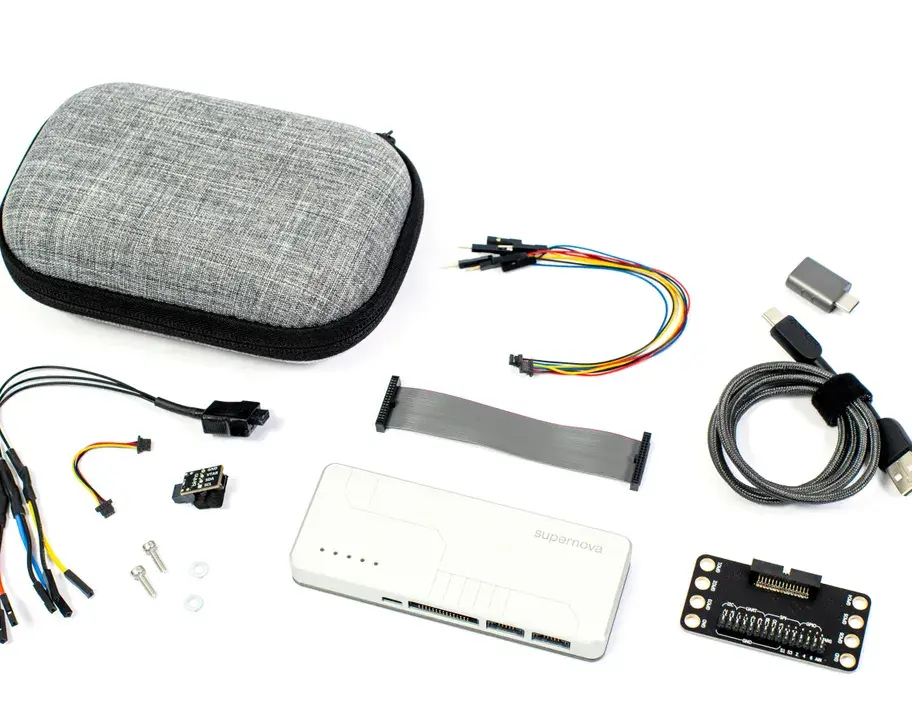

Package Contents
- 1× Binho Supernova USB Host Adapter
- Dedicated I2C Port Kit: 1× 4-pin JST SH (Qwiic-compatible) to 4-pin JST SH cable, 1× 4-pin JST SH (Qwiic-compatible) cable with male headers, 1× 4-pin JST SH (Qwiic-compatible) cable with female headers
- USB Kit: 1× USB Type-C to Type-A cable, 1× USB Type-A to Type-C adapter
- I3C Port Kit: 1× I3C harness terminated with 2.54 mm female headers, 6× 1-position centered male-to-male pin headers, 1× I3C port to 4-pin JST SH (Qwiic-compatible) adapter
- Multifunction Port Breakout Kit: 1× 30-conductor IDC ribbon cable, 1× ribbon cable to 2.54 mm pitch header breakout board
- Mounting Kit: 2× mounting screws, 2× washers
- 1× Custom protective zippered carry case
